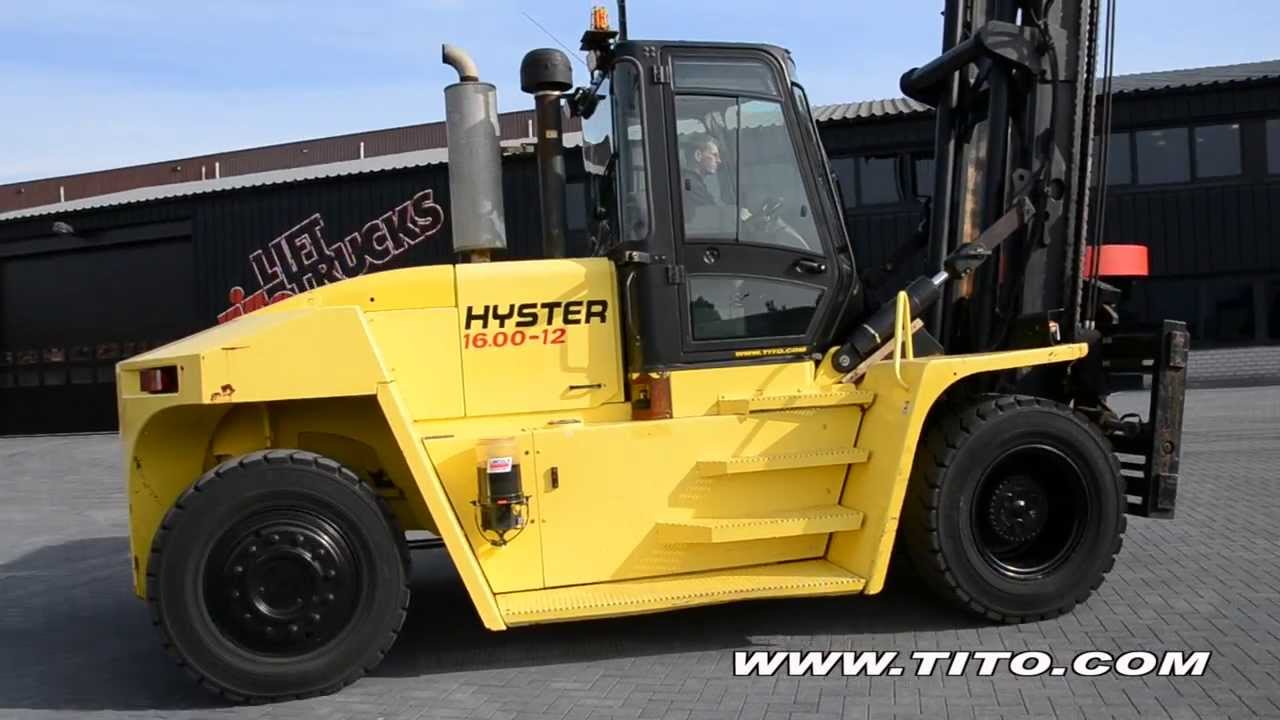

Shop 15 Log Splitters at Northern Tool + Equipment. Browse a variety of top brands in Log Splitters such as NorthStar, Powerhorse, and Ironton from the product experts. Tito Lifttrucks is specialized in buying and selling all types of material handling equipment, from heavy duty forklifts (capacity of more than 12 ton) to container handlers and reach stackers. Whether you are looking to buy a new or a used forklift, Tito Lifttrucks is able to help you. Reach stackers and heavy duty forklifts for sale. Counterbalanced forklift with Diesel Engine, large loading capacity, Chinese engine, Cummins engine for option Loading capacity: 12 ton, 15 ton, 16 ton, 18 ton Capacity: 20,000 units/year Hot Tags: heavy forklift truck 4-Wheel Electric Forklifts. Forklifts 16 tonnes. Indital 16 tonne Forklifts are designed to operate in demanding and intensive work environments and, with a robust build, they can take on your toughest loads with ease. They are highly stable when in operation, making them easy and safe to operate. Forklifts Perth, Forklift Hire WA, New & Used Forklifts For Sale - Forkwest Western Australia's premier supplier of new & used forklifts for sale, hire, repairs and parts.
- Counterbalanced forklift with Diesel Engine, Chinese engine and Isuzu engine for option Loading capacity: 1 ton, 1.5 ton, 1.8 ton Capacity: 20,000 units/yearRead More
- Counterbalanced forklift with diesel Engine, Chinese engine and Isuzu engine for option Loading capacity: 2 ton, 2.5 ton, 3 ton, 3.5 ton Capacity: 20,000 units/yearRead More
- Counterbalanced forklift with Diesel Engine, Chinese engine, Isuzu engine and Mitsubishi engine for option Loading capacity: 4 ton, 4.5 ton, 5 ton Capacity: 20,000 units/yearRead More
- Counterbalanced forklift with Diesel Engine, loading capacity over 5 tons, Chinese engine, Isuzu engine engine for option Loading capacity: 6 ton, 7 ton, 8 ton, 10 ton Capacity: 20,000 units/yearRead More
- Counterbalanced forklift with Diesel Engine, large loading capacity, Chinese engine, Cummins engine for option Loading capacity: 12 ton, 15 ton, 16 ton, 18 ton Capacity: 20,000 units/yearRead More
HNF-160
Rated load: 16,000 kgs
40 Ton Forklift
Load center: 900 mm
Operating weight: 24,000 kgs
Wheel base: 3,800 mm
1, using speed limit valve and pressure selector valve, reduce the hydraulic system impact, can lower the mast to the ground when engine flame out 2, adopt double pump confluence working hydraulic system, greatly reduce fuel consumption, energy consumption. Hydraulic system equipped with oil radiator and back pressure protection device, ensure the machine heat balance 3, adopt double turbine hydraulic torque converter, stepless speed change, single lever control for the speed changing, easier for operation.
4, widely used in airports, ports, docks, stations, warehouses and other big working intensity occasions for loading and unloading, stacking and short-distance transportation 5, front axle adopt heavy duty type driving axle, enlarge size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist, steel structure bridge shell support, increase the load capacity and service life.
6, No spokes plate type rim, increase the bearing capacity of hub.
How to repair the 16 Ton Forklift driving axle
The forklift's axle housing is firmly fixed on the forklift’s frame. As the driving axle and the frame are rigidly connected, the driving axle undertakes the most weight when forklift handling cargos, and when forklift working on uneven road or the unequilibrium of fork’s load ,driving axle will come to damages of bending, fracture, axle casing bearing hole wear and axle casing journal wear and so on.
The test and repair of Forklift driving axle housing’s bending
Test of the axle housing’s bending. Before testing, the first thing is to correct positive half axis and the flatness of the flat contact flange of the hub end, for eliminate the error of its round face runout. Then fixing the standard half-shaft on the driving axle housing, tightening bearing, testing the center of the left half axles and right half axles from housing’s inside to see whether bending or not. The difference between the two axes should less than 0.75mm.
driving axle housing should be corrected when it over limit. During testing, the deformation should not be greater than the original bending deformation, and should keep the correction pressure for a period of time, in order to make axle housing a certain plastic deformation. If the deformation is too big, bending deformation more than 2mm, the correction can be done after preheat, but the heating temperature is not allowed to exceed 700 ℃. It is better to avoid heating corrections for casted axle housing.
16 Tons Lyrics
Parameter of 16 Ton Forklift
16 Ton Trucks For Sale
Item | Item details | Unit | ||
HNF-150 | HNF-160 | |||
Features | Rated Load | Q（t） | 15 | 16 |
Load center | c（mm） | 600 | 900 | |
Wheelbase | y（mm） | 3500 | 3500 | |
Weight | Weight | kg | 22000 | 25000 |
Chassis | Tyre Specs.:Front | 12.00-24-18PR | 12.00-24-18PR | |
Tyre Specs.:Rear | 12.00-20-18PR | 12.00-20-18PR | ||
Tyres Qty,front/rear (X-drive wheels) | 42 | 42 | ||
Wheel tread:Front Segoe ui font download free mac. | b10（mm） | 2060 | 2060 | |
Wheel tread:Rear | b11（mm） | 2330 | 2330 | |
Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 612 | 612 |
Mast height(fork lowering) | h1（mm） | 3625 | 3625 | |
Mast lifting height | h3（mm） | 3500 | 3500 | |
Max.lifting height | h4（mm） | 5375 | 5375 | |
Height to head guard (height to cab) | h6（mm） | 3365 | 3365 | |
Overall height(with forks) | l1（mm） | 7640 | 7640 | |
Fork front vertical surface to the rear end of the vehicle | l2（mm） | 5840 | 5840 | |
Overall width | b1/b2（mm） | 2750 | 2750 | |
Fork dimension | s/e（mm） | 1800X180X90 | 1800X180X90 | |
Fork carriage width | b3（mm） | 2380 | 2380 | |
Mast min ground clearance (with load) | m1（mm） | 265 | 265 | |
Wheelbase center min ground clearance(with load) | m2（mm） | 325 | 325 | |
Min.Turning radius | Wa（mm） | 5800 | 5800 | |
Travel speed (with load/without load) | km/h | 26/30 | 26/30 | |
Performance | Max.lifting speed (with load/without load) | mm/s | 250/260 | 250/260 |
Max.Lowering speed (with load/without load) | mm/s | 430/330 | 430/330 | |
Traction | N | 15000 | 15000 | |
Gradeablity (with load/without load) | ％ | 20/22 | 20/21 | |
Driving brake | Hydraulic clamp disc | Hydraulic clamp disc | ||
Engine brand/model | Optional one | Yuchai engine | Yuchai engine | |
Engine | YC6J175-T302 | YC6J175-T302 | ||
Optional two | Dongfeng Cummins | Dongfeng Cummins | ||
QSB6.7-C190 | QSB6.7-C190 | |||
Cylinder No. | 6 | 6 | ||
Others | Transmission gears(Front/rear) | 21 | 21 | |
Attachments working pressure | bar | 160 | 160 | |
Attachments using oil amount | l/min | 60 | 60 |
